The TR-909 uses a hardware implementation of an LFSR as its noise generator. We’ve dealt with LFSR noise generators in a few other articles, but we’ve only looked at firmware implementations, so it might be fun to see how the same thing is done in hardware. The circuit is composed of three parts; the shift register […]
What do Roland’s “Cross Mod” or “Metal Sync” really do? There are quite few people asking this question on the internet, but no-one has much of an answer. Here’s a few forum discussions I found about it: https://www.harmonycentral.com/forum/forum/Keyboards/acapella-18/330134- http://forums.rolandclan.com/viewtopic.php?f=59&t=54410 https://music.stackexchange.com/questions/57210/what-exactly-is-the-cross-modulation-on-roland-jupiter-and-jx-analog-synthesiz/71048 Ok, so Harmony Central was never going to provide a solid technical answer, but the Roland Clan […]

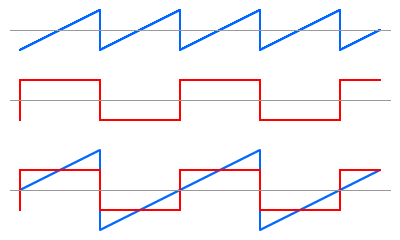

This article is a look at sub-oscillators, a common tactic for fattening up the bottom end, particularly in synths with only one oscillator, or only one oscillator per voice. Classic examples include the Roland Juno 106 and SH101, and the Korg Polysix. More recently, sub-oscs turn up on a lot of modern analog synths since […]

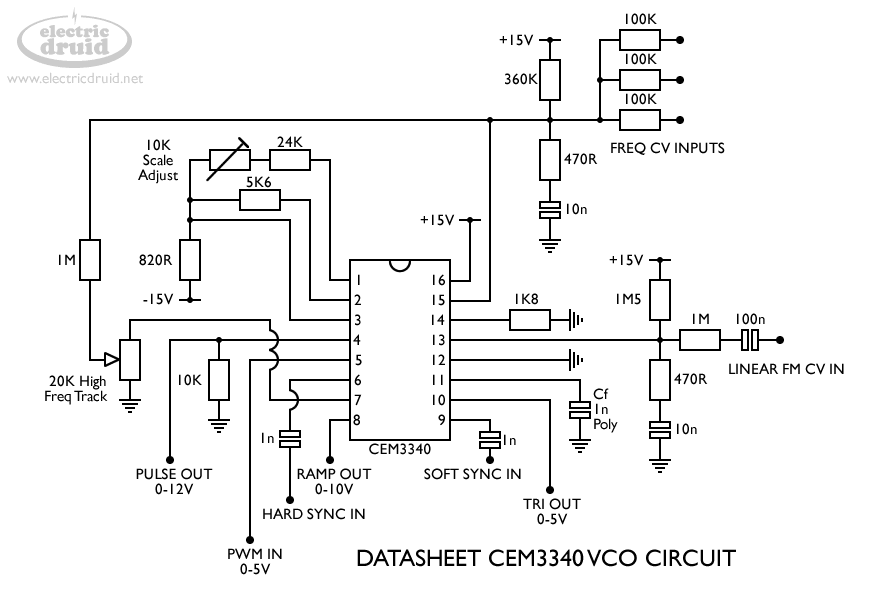

To celebrate the 2016 return of the CEM3340 chip, I thought I’d do another page in my series looking at how various synths implemented classic synth chips (the others being CEM3320 Filter designs and SSM2044 LP Filter designs). This is especially useful right now, since many people have bought a few CEM3340s or V3340s or AS3340s for their […]
The Roland SH-101 is a late-era analogue monosynth which uses a microprocessor to perform keyboard scanning and various related functions, much like the Sequential Pro-One. Since the original uP is a 40-pin DIP, it would be possible to replace it with a more modern 40-pin DIP uP, like the PIC 16F777, or with a modern […]

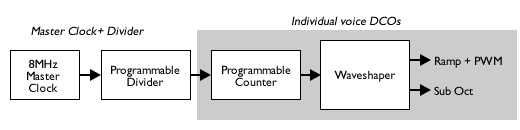

This page is a brief look at the technology of the Roland Juno series digitally controlled oscillators. The specific scheme presented here was introduced in the Juno 106 in 1984, but the same basic DCO design turned up in many Roland instruments through the 1980s (including the JX-3P, JX-8P, JX-10 and the MKS modules based […]
